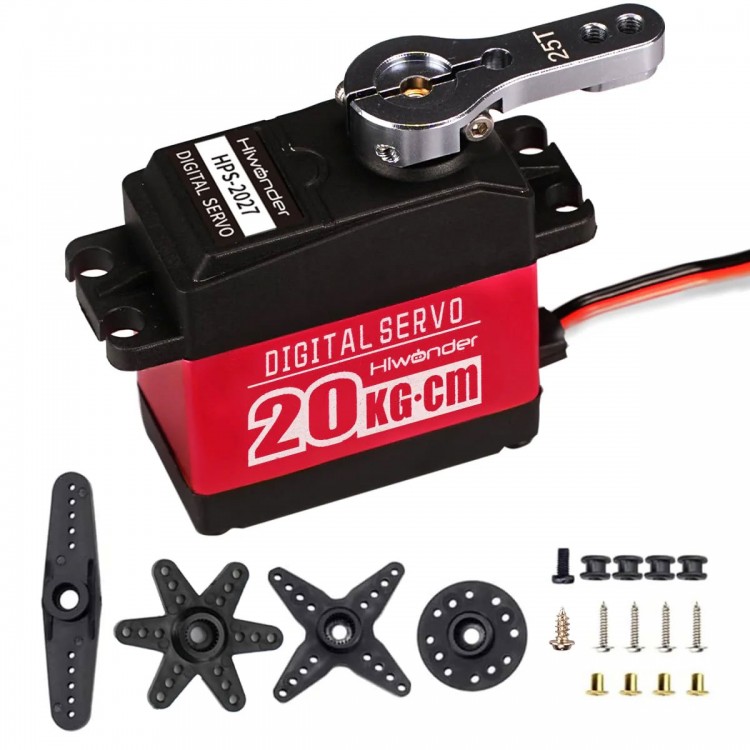

Hiwonder HPS-2027 20KG Digital Servo Single-Shaft Servo with 270° Rotation for Robots & Robotic Arms
Features:
HPS-2027 20KG High-Torque Digital Servo
* 270° rotation
* Imported potentiometer
* Durable metal gears
* CNC-machined metal case
* Includes control code for 51 MCU, Ar-duino, STM32, and Raspberry Pi
Imported Potentiometer
* It uses imported high-precision potentiometer, greatly improving accuracy and linearity. Movement is very precise, meeting the needs of building robots.
High-Quality Metal Motor
* The servo is equipped with a high-quality metal motor, allowing it to withstand greater load and impact. This significantly improves torque performance and extends the service life.
Stainless Steel Gears
* The gears are made of stainless steel, offering excellent wear resistance and durability for long-term use.
20KG High Torque
* Powerful 20kg·cm torque makes it suitable for various robotic and mechanical arm applications.
Red CNC-Machined Metal Middle Case
* Anodized red metal middle case enhances heat dissipation and gives the servo a stylish appearance.
* Convenient wiring design for easy and reliable connections.
270° Precise Control
* With a high-precision potentiometer and PWM control, the servo provides accurate 0–270° angle positioning.
Supports Multiple Controllers
* Compatible with Raspberry Pi, Arduino, 51, and STM32 controllers.
* Makes robot development and control easier and more fun.
Specifications:
* Product Name: HPS-2027 Digital Servo
* Brand: Hiwonder
* Product Weight: 66g

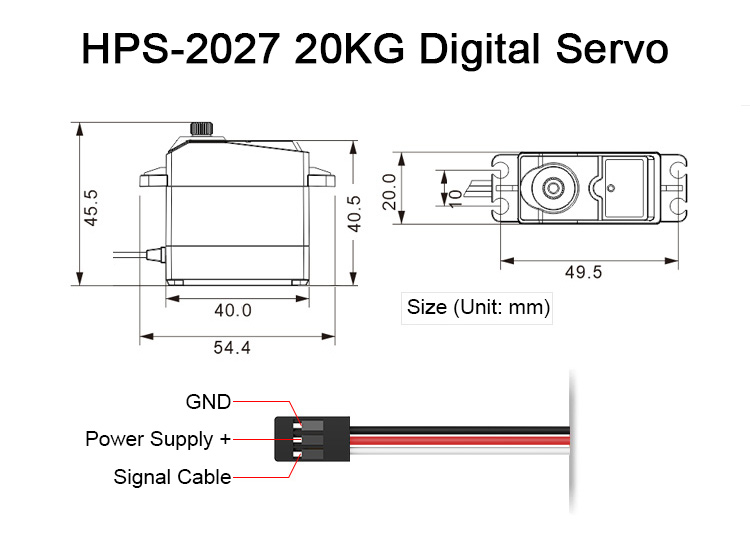

* Product Size: 40mm × 20mm × 40.5mm
* Operating Voltage: 6–8.4V
* Rotation Speed: 0.20sec/60° (at 7.4V)
* Stall Torque: 20kg·cm (at 7.4V)
* Rotation Range: 0–270°
* No-Load Current: 100mA
* Stall Current: 2.4–3A
* Servo Accuracy: 0.4°
* Control Method: PWM Pulse Width Control
* PWM Pulse Width Range: 500–2500µs (corresponding to 0–270°)
* Gear Teeth: 25T
* Gear Type: Metal Gear
* Cable Length: 30cm
* Suitable For: Various bionic robot joints
Packing List:
* 1 × HPS-2027 Digital Servo
* 1 × Set of Accessories
Packaging Details:
* Weight: 0.17kg
