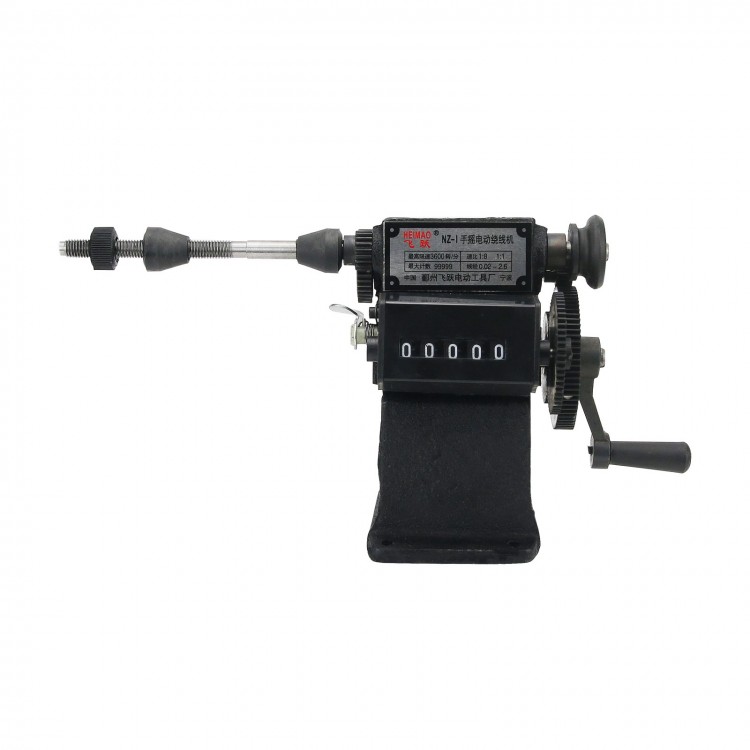

Manual Coil Winding Machine Hand Coil Winder with Counting 0-99999 NZ-1
Description:
This series of hand winding machine adopts gear transmission with counting function. It can be used for manual winding a variety of small coil and winding various coils tape.
Specifications:
- Model: NZ-1
- Maximum Diameter it can coil around: 150 mm
- Maximum Width it can coil around: 100 mm
- Count Range: 0-99999 Round
- Transmission Ratio: 1: 8(fast); 1:1 (slow)
- Rotating Speed: 0-2000 rpm
How to Operate:
1. This machine should be mounted on a sturdy worked bench. There are three holes on the machine for fastening it to the work bench.
2. This machine can be driven either by hand or by electric power. When driven by electric power, the handle has to be taken apart, and the spindle of the machine should run at a rotating speed lower than 2000rpm.
3. Regularly put some lube oil into the oil filter holes of the spindle.
4. Please turn the reset handle of the counter and let it reverse to "00000", before the machine going to work. It is required to turn the reset handle twice so as to have the whole counting gear come into the reset condition(otherwise, it will be possible for the gear to slip and thus lead to inexactness in counting). Please do not turn the reset handle when the machine is running.
Package Included:
- 1 x NZ-1 Coil Winder
Note: It can be dispensed from a motor drive by the buyer, < 1000 rpm.
