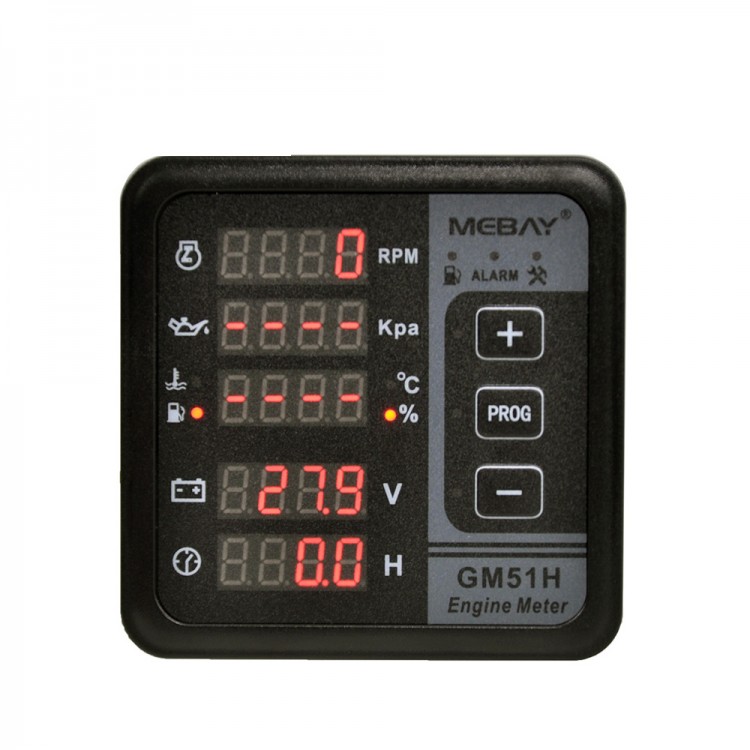

Mebay GM51H Digital Engine Meter RPM Tachometer for Diesel Engine Speed Oil pressure Water Temperature

Availability: In stock, usually dispatched in 1 business day

  • Price:$53.52
  • Price in reward points: 535 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $52.45 $51.38 $49.77 $47.63 Contact US
Quantity:
Buy it now Add cart

You might like

MEBAY GM70C Engine Meter ECU Engine Digital Meter Supporting CAN + RS485 + USB + Speed Control

MEBAY GM70C Engine Meter ECU Engine Digital Meter Supporting CAN + RS485 + USB + Speed Control

$168.74

(0)
Mebay DC100D Genset Parallel Controller Diesel Generator Engine LCD Control Board CAN Communication Interface Generador Parts

Mebay DC100D Genset Parallel Controller Diesel Generator Engine LCD Control Board CAN Communication Interface Generador Parts

$573.44

(0)
MEBAY DC50D-4G Cloud Genset Controller Generator Controller for 4G Cloud Control GPS Positioning

MEBAY DC50D-4G Cloud Genset Controller Generator Controller for 4G Cloud Control GPS Positioning

$189.15

(0)
MEBAY DC52D-4G Cloud Genset Controller Generator Controller for Mains Monitoring AMF GPS Positioning

MEBAY DC52D-4G Cloud Genset Controller Generator Controller for Mains Monitoring AMF GPS Positioning

$198.87

(0)
MEBAY DC42MCR Low Temperature Genset Controller Generator Controller Supports CAN Communication

MEBAY DC42MCR Low Temperature Genset Controller Generator Controller Supports CAN Communication

$151.98

(0)
GM50H Generator LCD Multifunction Meter Diesel Engine Monitor Oil pressure gauge

GM50H Generator LCD Multifunction Meter Diesel Engine Monitor Oil pressure gauge

$43.22

(0)
MEBAY DC72MR Ultra-Low Temperature Genset Controller Generator Controller for Mains Monitoring & AMF

MEBAY DC72MR Ultra-Low Temperature Genset Controller Generator Controller for Mains Monitoring & AMF

$246.56

(0)
MEBAY DC52C-4G Genset Controller Generator Controller Supports Mains Monitoring AMF Cloud Control

MEBAY DC52C-4G Genset Controller Generator Controller Supports Mains Monitoring AMF Cloud Control

$228.02

(0)

Mebay GM51H Digital Engine Meter RPM Tachometer for Diesel Engine Speed Oil pressure Water Temperature


Description:
- GM51H is one light and low price-orientated module used for demonstrating engine RPM,coolant temperature, fuel level,oil pressure, battery voltage and Hours. The users can adjust and set the parameters by the button on the front face in order to meet the different requests.

Specification:
- Usage:Engine Tachometer
- Function:Tachometer Oil Level Pressure Temperature Meter Voltmeter
- Input voltage:DC8V----36V Continuous
- Operation Temperature:-20~65℃
- Storage Temperature: -40~85℃
- Protection: IP54
- Installation size(W * H):91mm*91mm
- Weight: 0.2kg


Specification
Working voltage
DC8V----36V Continuous
Power consumption
Standby: 24V: MAX 1W
Working: 24V: MAX 1.5W
AC Voltage Input
1P2W 50VAC-280VAC（45～70Hz）
Rotate speed sensor Frequency
50-10000Hz(AC3～65V)
MAX Accumulating Time
99999.9Hours（Min storage time:6min）
Relay Output
5AMP Non-contact normal open & normal close output
Working condition
-25-65℃
Storage condition
-40-85℃
Protection Level
IP54：when coolantproof rubber gasket is added between meter and its panel
Insulation strength
Apply AC2.2kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within
1min.
Overall dimension
100mm*100mm*77mm
Panel cutout
91mm*91mm
Weight
0.15Kg


Main Features:
*32bit high performance single chip microcomputer. 5 screens
*Various kinds of protections.
*Input frequency is available to check RPM.
*Variety of sensor curves' parameters is set inside and sensor curve can be self-defined
*5 kinds of maintenance countdown can be set, and the first maintenance and routine maintenance can be distinguished;
*3 analog input channels of sensors, among which the oil pressure sensor is compatible with voltage signal input;
*The parameters can be set and adjusted by the button on the front face.
*It has high current alarm relay, one normally open and one normally closed output, which is convenient for users to use;
*Standard coolant-proof rubber gasket. The coolant proof can reach IP54.

Parameters Display

*Engine speed
*Engine oil pressure
*Engine coolant temperature
*Engine fuel level
*Engine battery voltage
*Total running time
*Maintenance notice

Protection
*Over speed
*Low oil pressure
*High temperature
*Sensor open
*Maintenance expire
*Low fuel level warning
*Battery under voltage warning
