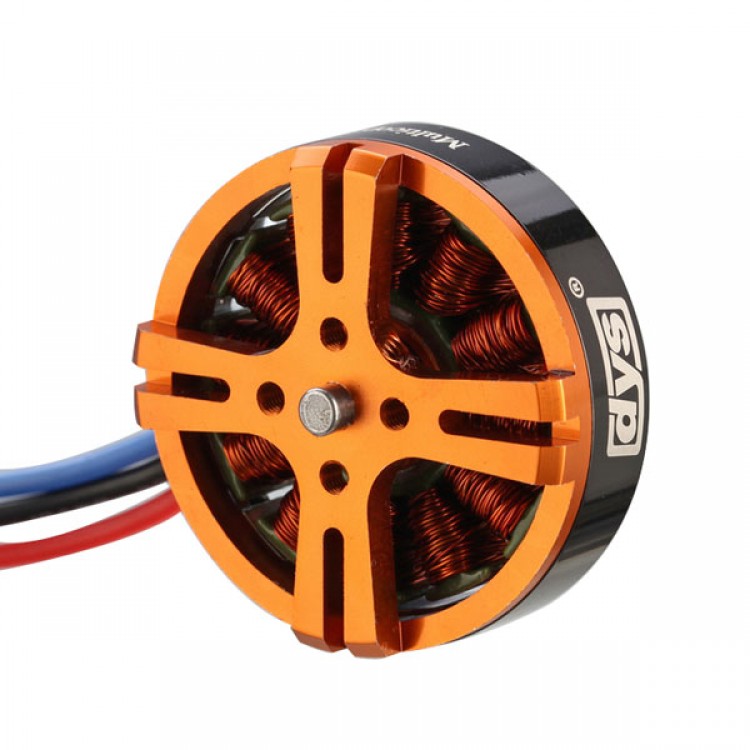

Multi-Rotor Brushless Motor D4215-21(650KV) for Quad Hexa Octa Multicopter
Specifications:
- KV..............................................................................................................650
- Configuration....................................................................................NP
- Shaft Diameter.......................................................................................4.0mm
- Motor Dimensions(Dia.*Len)...............................................Φ42×15mm
- Weight (g)...................................................................................................83g
- No.of Cells(Lipo).....................................................................................3-6S
- Max Continuous current(A)............................................................39A
- Max Continuous Power(W)...........................................................865W
- Internal resistance..............................................................................0.011
| Item No. | NO LOAD | ON LOAD | LOAD TYPE | ||||
| BE4215-21(650kv) | VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | Battery/prop |
| V | A | rpm | A | g | W | ||
| 11.1 | 0.7 | 5330 | 7.5 | 640 | 83.3 | LiPoх3/10x4.7(APC) | |
| 13 | 920 | 144.3 | LiPoх3/11x7(APC) | ||||
| 13.7 | 1070 | 152.1 | LiPoх3/12x3.8(APC） | ||||
| 14.8 | 0.7 | 7100 | 11.8 | 1050 | 174.6 | LiPoх4/10x4.7(APC) | |
| 20 | 1410 | 296.0 | LiPoх4/11x7(APC) | ||||
| 22 | 1620 | 325.6 | LiPoх4/12x3.8(APC） | ||||
| 18.5 | 0.8 | 8880 | 17.1 | 1520 | 316.4 | LiPoх5/10x4.7(APC) | |
| 27.6 | 1830 | 510.6 | LiPoх5/11x7(APC) | ||||
| 30.2 | 2060 | 558.7 | LiPoх5/12x3.8(APC） | ||||
| 22.2 | 0.8 | 10660 | 23.2 | 2020 | 515.0 | LiPoх6/10x4.7(APC) | |
| 35 | 2070 | 777.0 | LiPoх6/11x7(APC) | ||||
| 39 | 2290 | 865.8 | LiPoх6/12x3.8(APC） | ||||
DYS final released BE series super strength out-runner multicopter dedicated brushless motor, The BE series motor is with Kawasaki, Japan 1200 # 0.2mm high efficiency silicon steel and 40UH high temperature powerful magnet. Selected the Japanese NSK pure imported bearings to reduce motor vibration, shell using high-precision CNC machining and professional balancing test, making concentricity, balance is greatly enhanced. DYS BE Series multicopter dedicated motor perfectly compatible with more than 99% of commercially available brushless ESC.
Low vibration motor great for flying
-To make aircraft more stable
-Less operating noise
-More efficient
-Bearings long life
