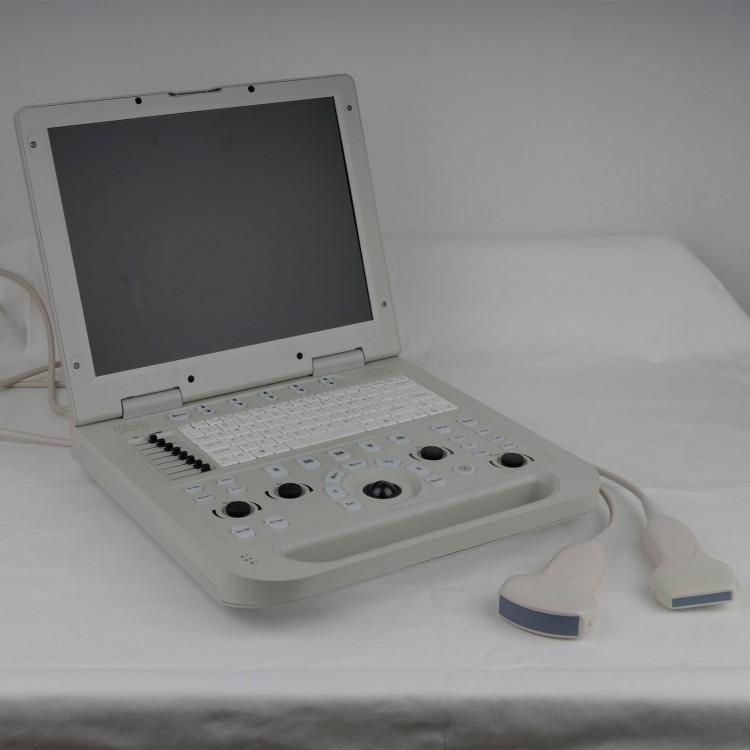

N20 Portable Full Digital Laptop Ultrasound Diagnostic System Dual Probe Port with 15-inch HD Display

N20 Portable Full Digital Laptop Ultrasound Diagnostic System Dual Probe Port with 15-inch HD Display

Main Functions and Features:
- 15-inch LCD medical display screen.
- Dual probe interface with automatic recognition function.
- Adopting high-end ARM system, image acquisition and processing are more intelligent.
- Plug and unplug lithium battery with a capacity of 6000mAh and a battery life of 4.5 hours.
- 128 element high-definition probe, emitting more dense ultrasound signals and higher definition images.
- Featuring five display modes: B, 2B, 4B, M, and B/M.
- Four encoders, knob design, quick and convenient operation.
- Easy to operate interface, simple and easy to understand, ready to get started anytime.
- Movie playback: 256 frames, can be played back frame by frame and paused for playback. After pausing playback, image saving and measurement can be performed.
- Operation interface: Chinese/English interface.
- Electronic focusing: four stage electronic focusing.
- Position markers: ≥ 98 types
- Frequency conversion: all probes support five stage frequency conversion.
- Image mirroring: up and down mirroring, left and right mirroring, black and white flipping.
- Measurement: professional software measurement package, including specialized measurement software packages for gynecology, urology, kidney, heart, thyroid, etc.
- Character display: date, clock, name, gender, age, doctor, hospital, comments (full screen character editing).
- Dynamic range: 0 - 135dB
- Interfaces: video interface, two USB interfaces, DICOM interface, SVGA interface, power interface
- Permanent storage: built-in 16GB storage, also available for external USB storage
- Grayscale: 256 levels
- Gain range: 0 - 100dB
- It has puncture guidance function and the puncture line position can be adjusted.
- It has the functions of gravel positioning and dynamic target area tracking.
- Pre-processing: Variable aperture, dynamic apodization, dynamic digital filtering, etc.
- Post processing: 8 types of gamma correction, row correlation, 16 level frame correlation, point line correlation, linear interpolation, digital spatiotemporal filtering, digital edge enhancement, 8 types of pseudo color processing, etc.
- Blind spot: ≤4
- Maximum display depth: 300mm
- Geometric accuracy: Horizontal ≤5%, vertical ≤5%
- Resolution: Lateral ≤2mm, Axial ≤1mm
- Display magnification: 16 display modes; The diagnosis of lesions is more accurate. Can enhance depth display.
- Product size: 360 x 355 x 65mm
- Net weight: 4.2kg

Package Included:
- 1 x Laptop Ultrasound Diagnostic System
