ORBBEC Persee+ 3D Depth Camera Structured Light Visual Terminal with High Performance A311D Chip for Amlogic

ORBBEC Persee+ 3D Depth Camera Structured Light Visual Terminal with High Performance A311D Chip for Amlogic

Features:
- High performance A311D chip for Amlogic
- Depth FOV: H55°±1° V45±1° D65°±1°at 1m
- Multiple application: high precision depth image, multiple resolution and high definition color images

Specification:
- Structure: All-in-one
- SOC platform: for Amlogic A311D
- CPU: ARM Cortex - A73 x 4 + CPU Cortex - A53 x 2
- GPU: Mail - G52 MP4
- RAM: 4GB LPDDR4
- Storage: 32GB EMMC
- Storage expansion: support 128G micro SD card expansion
- Persee+ supported depth image resolution:
  1280 x 1024 at 7/10/15/30fps
  640 x 480 at 7/10/15/30fps
  320 x 240 at 7/10/15/30fps
  160 x 120 at 7/10/15/30fps
- Supported color image resolution:
  2048 x 1536 at 15fps
  1920 x 1080 at 30fps
  1280 x 720 at 30fps
  1024 x 768 at 30fps
  640 x 480 at 30fps
- Depth range: 0.6 - 8m
- Depth FOV: H55°±1° V45±1° D65°±1°at 1m
- Color FOV: H74°±1° V59±1° D86.5°±1°
- Persee+ depth camera Baseline: 75mm
- Persee+ depth precision: 3mm at 1m
- Persee+ laser safety: Class 1 laser
- Display interface: HDMI (HDMI 2.0)
- WiFi and Bluetooth: dual-band WiFi: 2.4G, 5G; Bluetooth 5.0
- Ethernet: RJ45 kilomega
- Shakedown port: Type-C shakedown
- Button: Update button
- Power indicator LED: No
- Power input: support DC power input (12V 1.5A - 12V 2A input)
- Operation system: For Android 9.0 / ubuntu 18.04 dual system
- Audio output: 3.5mm stereo output
- Microphone: 4 microphone linear microphone array
- Infrared receiving: support infrared remote control receiving (infrared remote control is included)
- Bluetooth remote control: support (Bluetooth remote control is not included)
- USB interface: Type-A USB2.0
- USB shakedown: Type-C Debug (for firmware programming or modulation)
- Working temperature: 0℃ ~ 40℃
- Application: indoor
- Power consumption: 7.5W typ.
- Storage temperature: -20℃ ~ 60℃

Video decoding:
- VP9 Profile - 2 up to 4K x 2K at 60fps:
- H.265 HEVC MP- 10 at L5.1 up to 4Kx2K at 60fps
- AVS2-P2 Profile up to 4Kx2K at 60fps
- H.264 AVC HP at L5.1 up to 4Kx2K at 30fps
- H.264 MVC up to 1080P at 60fps
- MPEG-4 ASP at L5 up to 1080P at 60fps (ISO - 14496)
- WMV/VC-1 SP/MPIAP up to 1080P at 60fps
- AVS-P16(AVS+ )/AVS-P2 JiZhun Profile up to 1080P at 60fps
- MPEG-2 MP/HL up to 1080P at 60fps (ISO - 13818)
- MPEG-1 MP/HL up to 1080P at 60fps (ISO - 11172)
- RealVideo 8/9/10 up to 1080P at 60fps
- Multiple language and multiple format sub-title video support
- MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC - 10918)
- Supports JPEG thumbnail, scaling, rotation and transition effects
- Supports .mkv/.wmv/.mpg/.mpeg/.dat/.avi/.mov/.iso/.mp4/.rm and .jpg file formats

Audio decoding:
- Supports MP3, AAC, WMA, RM, FLAC, Ogg, Dolby Digital optional , Dolby Digital Plus optional, DTS optional and programmable with 7.1/5.1 down-mixing:
- Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
- 3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch
- Digital microphone PDM voice input with programmable CIC, LPF & HPF, support up to 8 DMICs
- Built-in stereo audio DAC
- Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM

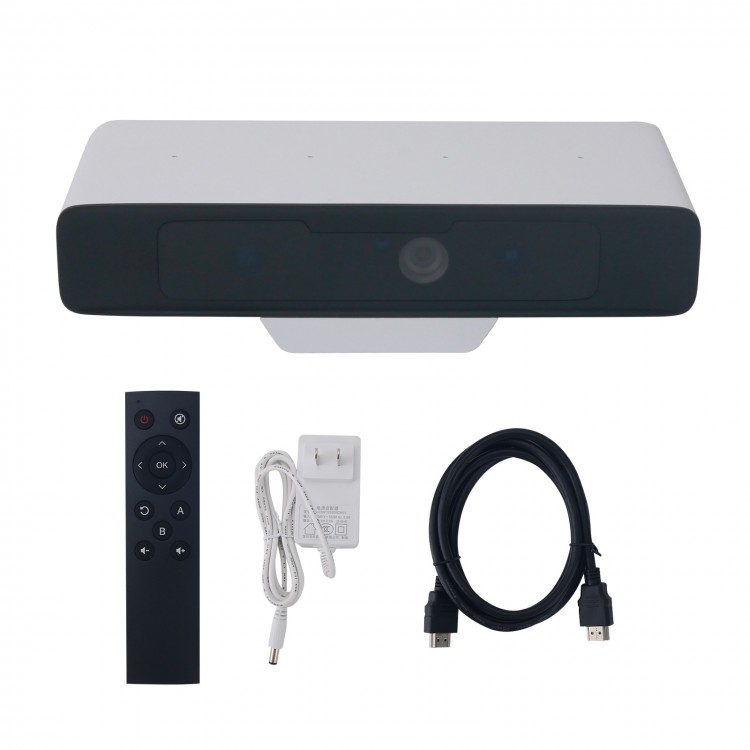

Package Included:
- 1 x Host
- 1 x Infrared Remote Control
- 1 x HDMI HD Cable
- 1 x Power Adapter
