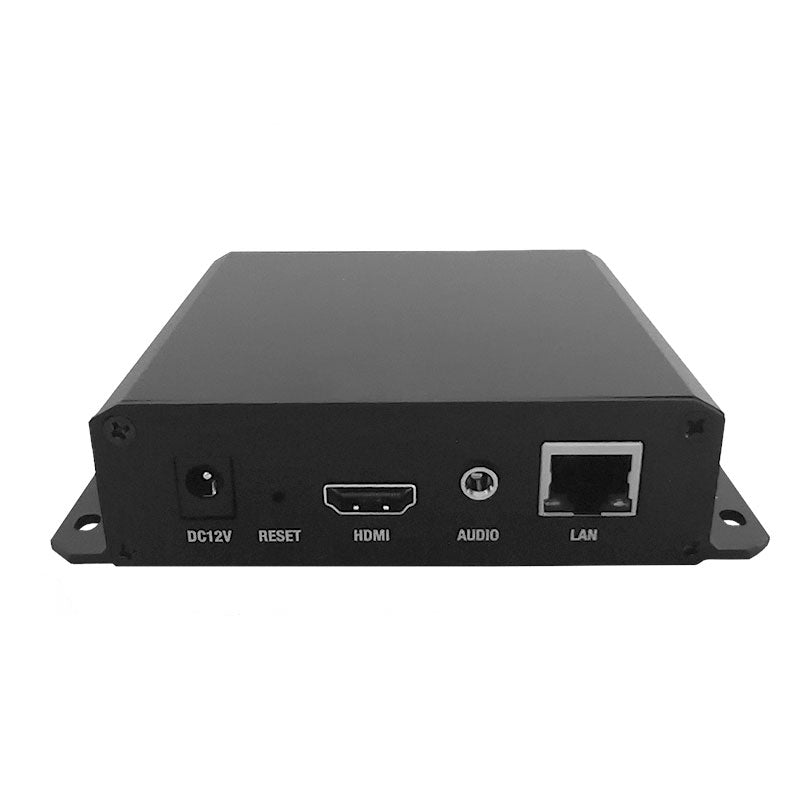

H.265/H.264/MJPEG HD Live Stream HDMI-compatible to RJ45 Low Delay Video Encoder Hi3516CV610 (for Hisilicon POE)

Key Features:
- CPU: Hi3516CV610
- HDMI-compatible input network output 1 main stream and 3 secondary streams.
- Encoding format: H.265/H.264/MJPEG
- Maximum input resolution frame rate: 3840 x 2160P60
- Maximum output resolution frame rate: 1920 x 1080P60
- Low latency private protocol: PTE (80-200 milliseconds)
- Video protocol: RTMP/RTSP/HTTP TS/HTTP FLV/HLS/UDP multicast/RTP multicast
- Support ONVIF to search, browse videos, and dock with NVR.
- OSD: Add logo, text, time, and scrolling text
- Audio: HDMI-compatible audio input or 3.5mm external audio input, supports stereo sound
- Support GB28181 protocol docking
- Configure parameters and upgrade firmware through WEB

Description:
- Supports 1 main stream, 3 secondary streams (outputs 4 streams).
- Functions: live streaming, monitoring NVR recording, IPTV live streaming, LAN live streaming, low latency transmission, OSD settings.
- 7 x 24hours 4-channel stable working.
- Upgraded functions: live, monitor NVR recording and playback, IPTV live, LAN live, low delay transmission, OSD setting.
- Support for RTMP/RTMPS/SRT protocols to stream live to major mainstream platforms.
- Built in RTMP, default RTMP streaming address: rtmp://192.168.1.168/live/0
- Built-in SRT, default SRT streaming address: srt://192.168.1.168:9000
- By using the ONVIF protocol, NVR can retrieve the encoder IP and add it to the NVR to play stored videos.
- Supports live streaming for multiple people on the local area network, and supports for RTMP/RTSP/HTTP TS/HLS/FLV/RTP/UDP/SRT protocols for direct playback within the local area network.
- PTE protocol with a delay of 80-200 milliseconds; The PTE protocol is a proprietary protocol independently developed, with the main function of low latency.

Specification:
Audio/Video Input:
- Video input: 1 channel HDMI-compatible
- Audio Input: 1 channel HDMI-compatible built-in audio; 1 channel 3.5mm external audio

Video Encoding:
- Encoding type: H.265/H.264/MJPEG
- H.264 profile: Baseline/Main/High (optional)
- Encoding frame rate: 5 - 60 adjustable
- Key-frame interval (fps): 5 - 300 adjustable
- Bit rate (kbit): 32 - 32000 adjustable
- Encoded resolution: 1920x1080 /1680x1056 /1280x720 /1024x576 /850x480 /720x404 /704x576 /640x480 /640x360 /608x448 /544x480 /480x480 /480x384 /480x360 /480x320 /480x272 /480x270 /400x320 /400x224 /352x480 /352x228 /320x256 /320x240 /320x180 /240x180 /same as the input resolution
- Stream control: CBR/VBR (optional)
- Streaming protocol: support for RTMP/RTSP/HTTP TS/HTTP FLV/HLS/SRT/UDP Multicast/RTP Multicast

General Parameter:
- Network: Gigabit
- Configuration management: via WEB
- ONVIF: support for ONVIF search or browse video
- Power supply: 12VDC, 2A
- Power consumption: 2W
- Working temperature: -20℃ to +60℃
- Working humidity: <90%, non-condensing
- Product size: 10.3 x 11.5 x 3.3cm
- Net weight: 257g

Package Included:
- 1 x Encoder
