UVC to HDMI-compatible Converter 4K60 Video Transmission Support for Action4/5/6/Pocket3/Insta360

Key Features:
- Support for Action456/Pocket3/Insta360 to HDMI-compatible conversion.
- Support fast charging for the camera without losing power, and can be used by unplugging the camera battery.
- Convert to HDMI-compatible for image transmission/acquisition card/live streaming pusher, transmitting both audio and video simultaneously.
- Video conference camera converted to HDMI-compatible.
- Support teaching materials screen projection.
- Supports cameras with resolutions of 4K60 and below.
- Compatible with USB cameras from various brands.
- Ultra-low latency.

Description:
- Support for ACTION456/INSTA360/USB cameras to HDMI-compatible conversion for image transmission/acquisition cards/live streaming, enabling multi lens switching between live streaming and sports live streaming.

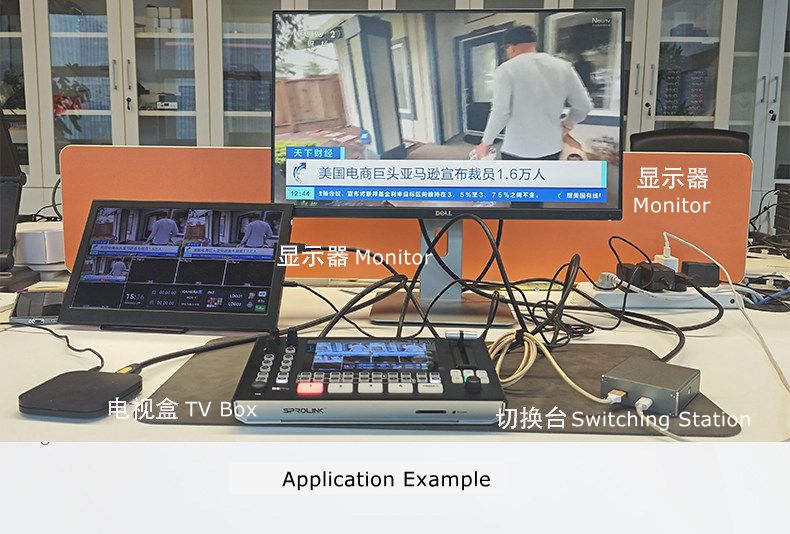

- You can directly convert the UVC output of the switching station to HDMI-compatible for the large screen, saving the trouble of computer conversion.
- Teaching conference screen projection: teaching materials/art teaching aids/teaching scenes can be easily projected onto a 4K large screen.
- 4K60 video transmission: supports input 4K60 and lossless output 4K60 (For ACTION 6 UVC only supports 1080P30 output), compatible with display device resolution output.
- Support fast charging protocol: use fast charging cables and fast charging adapters to power the device, the camera does not power down, and can also be used by unplugging the battery (if it is not powered by fast charging, unplugging the battery is not supported, and charging the camera will also power down); Supports power supply methods such as power banks, V-port batteries, NFT 970 batteries, and mobile phone chargers.
- Vertical screen without black borders: achieve seamless vertical screen transmission with just one click switch, without black borders.
- Low latency: the delay from USB camera input to HDMI-compatible output is extremely low and can be ignored.
- Connect USB 3.0/3.1 and below cameras, support 99% USB cameras (supporting UVC protocol), no restrictions on camera brands, support 4K resolution and below.
- Camera parameter adjustment: supports mouse connection to adjust camera parameters.
- Widely used in electronic teaching, multimedia conference rooms and other occasions.

Specification:
Video Input:
- Input type: UVC camera
- Input resolution: 3840 x 2160P 60 backward compatible

Video Output:
- Output interface: HDMI-compatible
- Output resolution: 3840 x 2160P 60 backward compatible
- Rotation: 0/90℃/180℃/270℃
- Vertical screen: support
- Aspect ratio: NONE/AUTO/4:3/16:9/16:10/1.85:1/2.35:1
- Audio: enable/disable
- Volume: 0 - 20
- Other camera parameters: adjust according to your camera

Interface Protocol:
- Type-C: USB3.0/PD fast charging protocol
- USB: USB3.0

Universal Parameter:
- Power supply: DC5V/3A; 9V/2A; 12V/2A
- Power consumption: <2W
- Working temperature: -20℃ to 60℃
- Working humidity: <90%, non-condensing

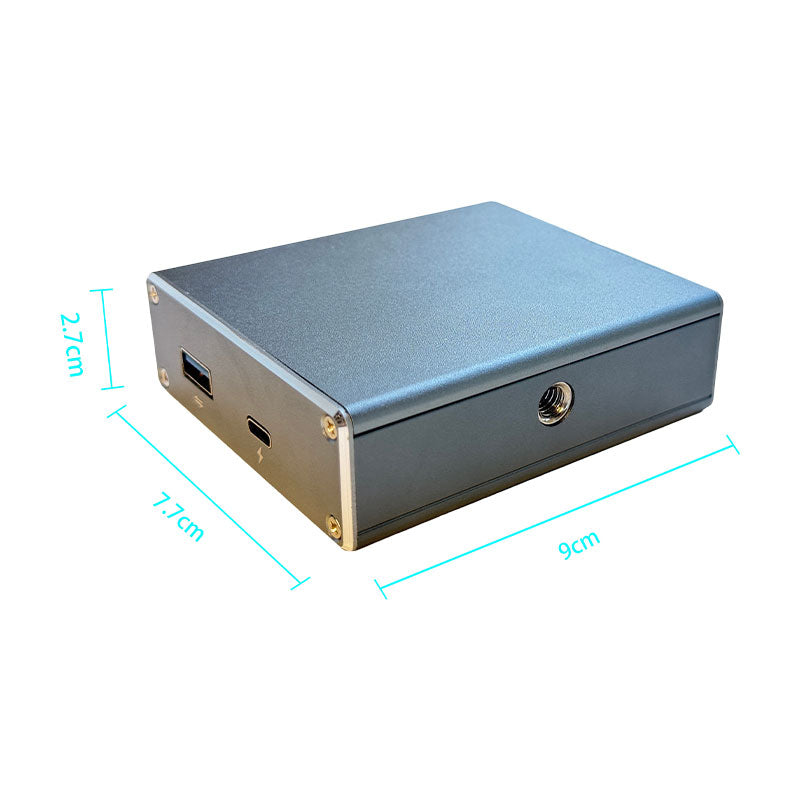

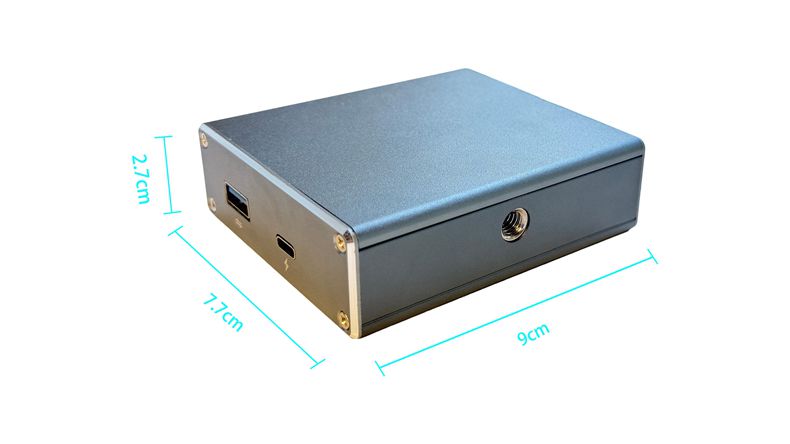

- Product size: 9 x 7.7 x 2.7cm
- Net weight: 162g

Package Included:
- 1 x Converter
