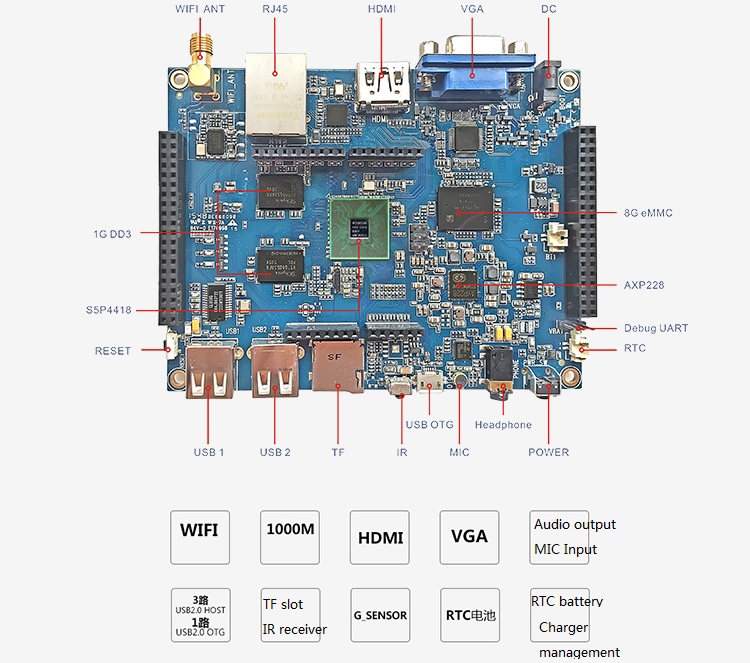

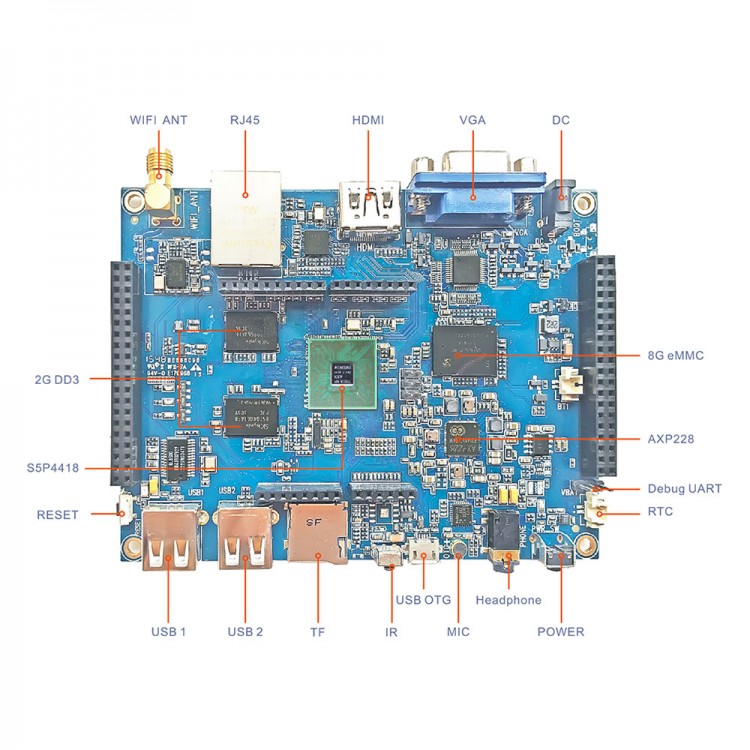

S5P4418 Quad Core Open Source Hardware Development Board Android 4.4 System
Specifications:
- CPU main frequency: 1.4G
- Encapsulation size: 0.65mm pin spacing 17*17mm 513-FCFBGA
- CPU structure: Cortex-A9 quad core
- Cache capacity: 32KB*4 I/D ,1MB cache
- DDR3 interface: Single channel 2*DDR3 32bit data bus cable,working frequency up to 800MHz
- Multimedia decoding: H.263 H.264 MPEG1/2/4,VCI,VP8,Theora,AVS,RV8/9/10,MJPEG
- Multimedia CODING: H.263 H.264 MPEG4,MJPEG
- Display interface: RGB/MIPI/LVDS(support LVDS output, can connect to LVDS c=screen directly)
- Maximum display resolution: 2048*1280
- Ethernet interface: Integrated 1000M ethernet controller
- IO function: All IO with Interrupt function
- GPIO level: 3.3V
- ADC: 8CH 12BIT 0-1.8V
- USB interface: 1CH HSIC, 1CH OTG
- UART: 6CH
- Network: Gigabit IP, support 10/100/1000M
- USB HOST: USB2.0 HOST
- Chip ID: Support 128bit
- Slim bus: No
- C2C interface: No
- GPS: No
- ISP: No
Package list:
- 1 x Development Board
