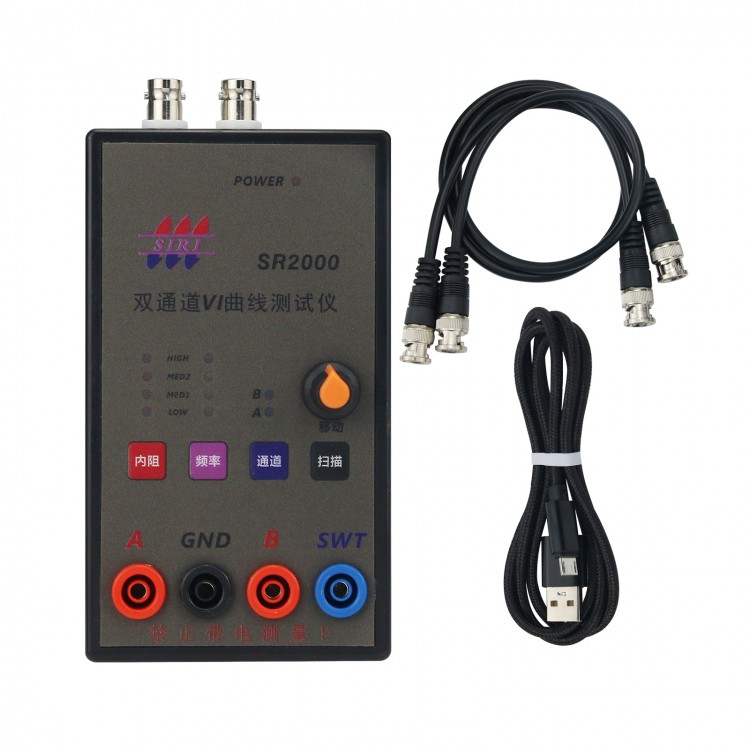

SR2000 VI Curve Tester ASA Tester Dual-Channel Display With BNC Cables For Circuit Board Online Test
Description:
It is a dual-channel curve tester, which displays two channels at the same time, moving left and right. It can compare the quality of components. Automatic scanning function is added. The device should be used with a dual-channel oscilloscope.
Power cord is not included. It comes with 2pcs BNC cables.
More Details:
1. Use the supplied BNC cable to connect the XY of your oscilloscope as marked.
2. Set the vertical sensitivity to 2V/div and the horizontal time base to 5MS/div (the digital oscilloscope needs to adjust the time base according to different frequencies, and the horizontal line will be displayed as dots without adjustment). If the trigger curve is displayed as a 45-degree line, select another trigger channel. Mode: x-y.
3. Select low resistance, low frequency, connect test leads, adjust the horizontal position, make the open-circuit horizontal curve on the horizontal cross axis. Short-circuit the test leads, and the screen will display a vertical line. Adjust the vertical position so that the vertical line is on the vertical cross axis.
4. It has 4 internal resistances and 4 frequencies to choose from. Press the button to select, the internal resistance and frequency indicators will light up. Press the channel key, A, B, and A/B will flash, and A/B will be displayed at the same time (dual channels).
5. For other detailed VI's internal resistance, frequency selection, and curve definition, please contact us.
6. The choice of internal resistance is very important. Inappropriate internal resistance will make the curve show open circuit or short circuit curve. The most sensitive curve is 45 degree angle.
Package Included:
- 1 x Set of VI Curve Tester
