T10P Robot Tank Chassis Smart Robot Car Chassis Kit with Controller System Open Source for DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$74.82
  • Price in reward points: 748 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $73.32 $71.83 $69.58 $66.59 Contact US
Quantity:

T10P Robot Tank Chassis Smart Robot Car Chassis Kit with Controller System Open Source for DIY

Features:

- Tank chassis kit with controller system
- Support secondary development
- Support remote control via controller for PS2
- Support computer programming
- Suitable for grass, gravel Gobi, fine sand, uneven road, etc.
- Application field: suitable for universities, laboratories, scientific research units, robot enthusiasts, etc.

Product parameters:
- Item name: Mini T10P Smart Tank Car
- Material: Aluminum Alloy
- Surface: sandblasted oxidation
- Track: plastic track
- Top plate: acrylic plate
- Weight: about 500G/1.1LB
- Load capacity: about 3KG/6.6LB
- Ground clearance: about 20mm/0.8" (the ground clearance depends on motors used)
- Dimensions: Approx. 175 x 180 x 85mm/6.9 x 7.1 x 3.3" (LxWxH)

Attention:
The load capacity of the car is for reference only. The torque of the motor affects the load capacity. If you have special load and speed requirements, you can contact customer service to configure the motor corresponding to the load and speed.

HM-GM-25-370 9V 150RPM DC Geared Motor:
1.1 Advantages:
- Metal gears
- Forward and reverse
- Adjustable speed

1.2. Motor Parameters:
- Model: HM-GM-25-370 9V 150RPM DC geared motor
- Output rate: 150±10%rpm
- Minimum load current: 200mA (Max)
- Stall current: 4500mA (Max)
- Stall torque: 9.5kg.cm
- Load speed: 100±10rpm
- Load moment: 3000g.cm
- Load current: 1200mA (Max)
- Load noise: 56Db
- Working voltage: 9V (work normally in the range of 6-9V)
- Shaft size: 14.5mm
- Axial clearance: 0.05-0.50mm
- Mounting screw holes: M3.0
- Motor shaft diameter: 4mm D3.5
- Code wheel parameters: 2 pulses/circle
- Attention: Comes with hall sensor/code disc speed measurement

Tips:
1. The positive and negative poles of motor power supply input port (VCC and GND) can be switched (that is, there is no practical sense of positive and negative poles, which can be connected in the forward direction or in the reverse direction).
2. The input voltage of the power supply of the hall sensor is DC 5.0V. The GND and VCC of the hall sensor voltage cannot be connected reversely.
3. The use of Hall sensors requires professional electronics developers, and it is difficult for beginners in electronics. Please note that we do not provide any technical support.
4. When the Hall sensor is not used, the motor can be used as an ordinary DC geared motor, and only the positive and negative electrodes of the motor need to be connected.

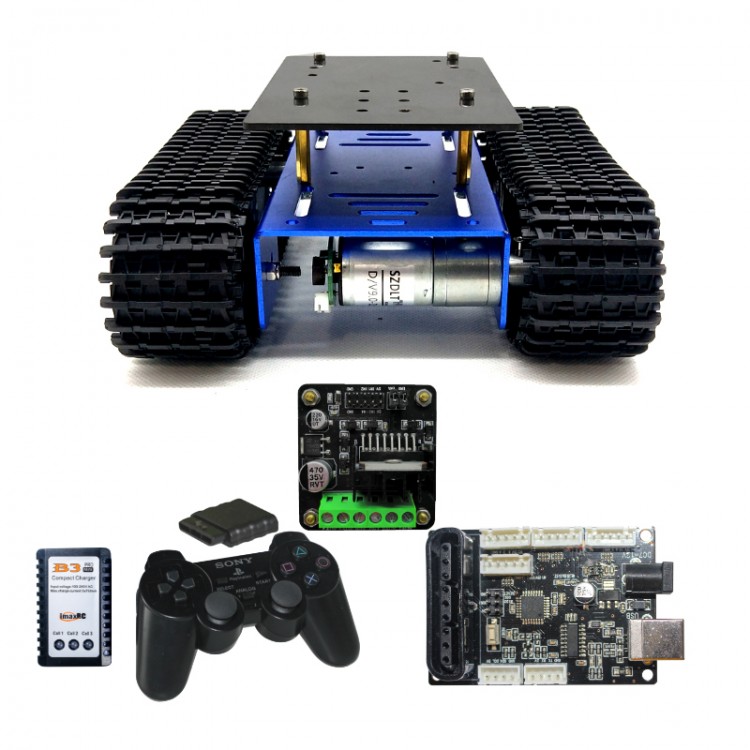

Package Included:
- 1 x T10 Tank Chassis
- 1 x Hello Maker P20 Controller Board
- 1 x L298N Motor Driver Board
- 1 x Receiver
- 1 x Controller For PS2
- 2 x 9V 150RPM Motor (default)
- 1 x Charger
- 1 x Screw Kit

Note:
- Assembling is needed.
- Chassis and control system are included, while battery is not included. 7.4V 3200mAh lithium battery is recommended.
- Items in blue will be delivered by default. If silver or black ones are in need, please contact us. Thank you!
