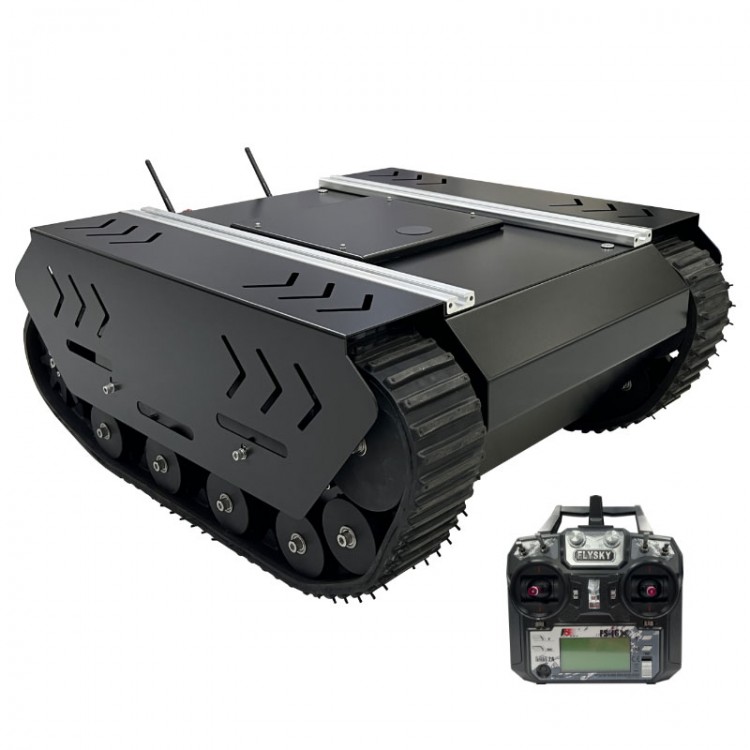

TR600 Mini Developer Edition Tank Chassis Robot Chassis with 48V 500W Motor for Open Source Development Platform

Availability: In stock, usually dispatched in 1 business day

  • Price:$4,520.81
  • Price in reward points: 45208 Reward Points: 452
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $4,430.39 $4,339.98 $4,204.35 $4,023.52 Contact US
Quantity:

TR600 Mini Developer Edition Tank Chassis Robot Chassis with 48V 500W Motor for Open Source Development Platform

Product Features:

- TR600 Mini tracked development chassis
- All-terrain tank chassis
- ROS is supported
- Supports model airplane controller
- Made from high-quality materials
- Works efficiently
- Long-lasting power
- It can move while carrying a heavy load
- Remote control over long distances
- Customization supported
- Suitable for a variety of terrains: Can be applied to industrial parks, factories, parks, hills, farmland, etc.
- Rubber tracks: The track has a long contact with the ground and a firm grip. Embedded Kevlar fiber for track tension
- High safety factor: Users can quickly stop the chassis operation due to an emergency brake switch

Technical Parameters:

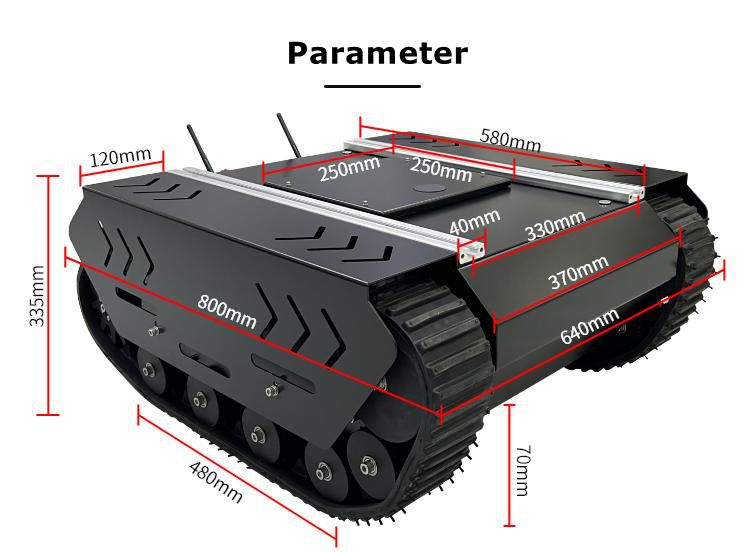

- Dimensions: 800 x 640 x 335mm
- Surface treatment: Electrostatic baking paint
- Drive mode: left and right independent drive and track differential steering

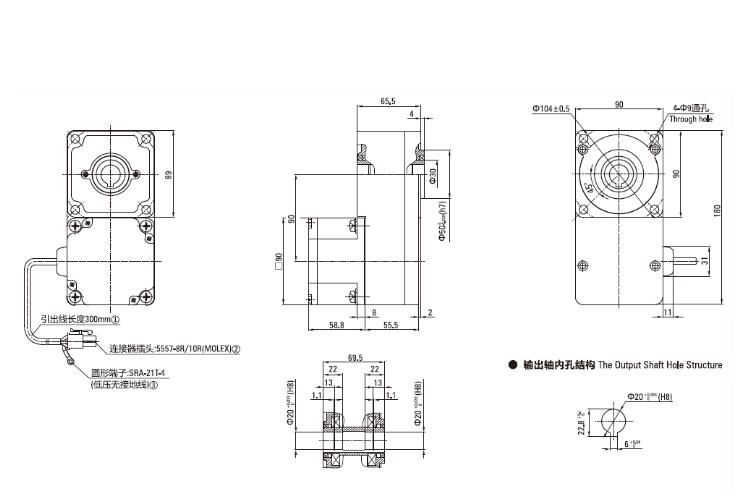

- Motor: 48V 500W brushless DC motor*2
- Maximum running speed: 2.0m/s with motor reduction ratio of 1:10 and load capacity of 80kg
- Track material: 87mm/3.4" thickened quality rubber track with Kevlar fiber inside
- Minimum turning radius: 0mm (spot turn)
- Charging method: 220V stand-alone aviation plug charger
- Vertical obstacle crossing height: ≤120mm
- Weight of whole set: about 50kg
- Body material: 2mm high carbon steel
- Communication interface: TTL serial/CAN interface (communication protocol provided)

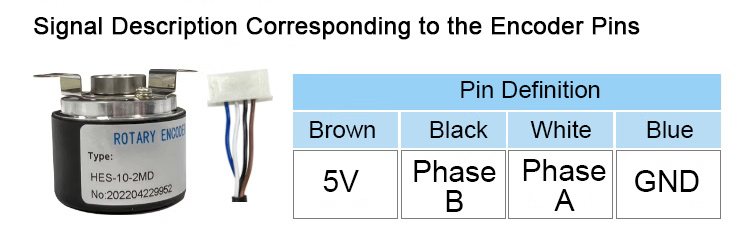

- Encoder: 1000PPR incremental optical encoder*2
- Shock absorption design: 8 groups of independent suspension shock absorbers
- Lithium battery: 48V 30Ah lithium battery with overcharge and over-discharge protection
- Battery life: about 1.5-2 hours (if you need a longer battery life, you can increase the battery capacity)
- Control system: With a 2.4G model aircraft controller and its control distance is about 80-100m/262.5-328.1ft (in the open area vision, users can upgrade the remote control to increase the control distance)

Developer Edition:
1. Provides serial/CAN interface and communication protocol to support secondary development;
2. Provide ROS driver package for host computer, support host computer command control;
3. Provide source code and schematic diagrams, a full set of technical development kits and learning materials;
4. Provide power distribution board, reserved 5V, 12V and 24V power supply interfaces.

Package Included:
- 1 x Chassis
- 2 x 48V DC Brushless Motors
- 2 x 1000PPR Incremental Photoelectric Encoders
- 1 x 24V STM32F407 Control Board
- 1 x Power Distribution Board
- 1 x Charger with 220V Aviation Plug
- 1 x Model Airplane Controller

Note:
- The chassis has been assembled and debugged before delivery.
- 24V 30Ah Lithium Battery is not included.





Features of STM32F407 Control Board:
1. STM32F407VET6 main control;
2. On-board MPU6050 six-axis sensor. It can send its own data through the serial port or CAN port;
3. Support 4-channel DC encoder motor (PID), the integrated motor driver chip is AT8236, and the maximum current is up to 2A;
4. Support OLED screen to display motor operating parameters, voltage and control status;
5. The reserved interface can be used as a sensor expansion interface;
6. The USB interface supports the upper computer control to send its own data;
7. Provide SWD debugging interface and support online debugging.
