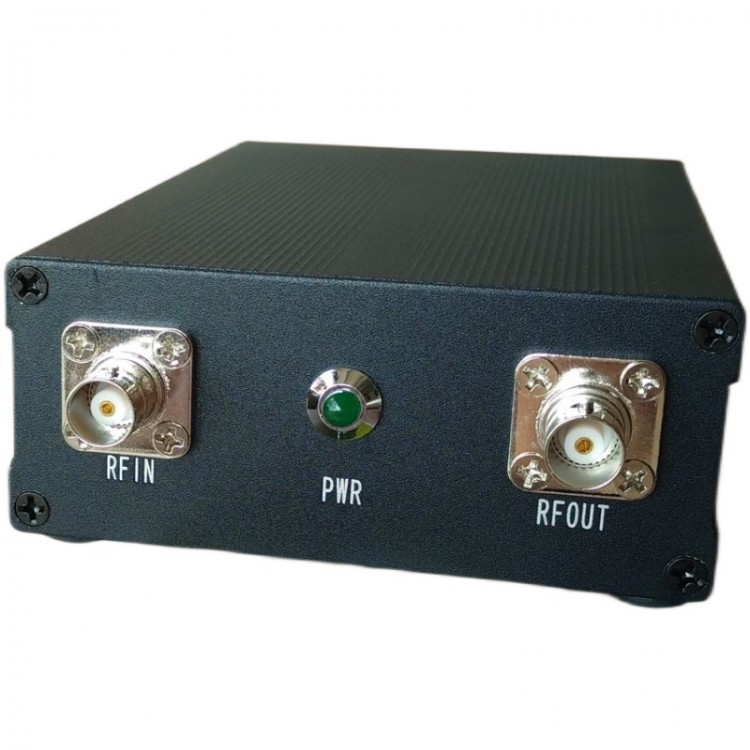

WT500R 1K-550M Sweep Signal Generator Scalar Network Analyzer Measure S11 S21 Step 1Hz
Description:
The frequency range of WT500R virtual sweeper is 1K-550M. It features 1Hz stepping, amplitude stepping 0.01dB, built-in electric bridge. It can measure S11 and S21 parameters at the same time. The machine is connected to computer USB port for use.
Specifications:
- Model: WT500R
- Function: S21, S11 measurement, built-in bridge can measure antenna standing wave
- S21/S11 frequency range: 1k-550M
- Step: 1Hz
- Output signal strength: about 0dBm
- S21 dynamic range: better than 65db
- S11 dynamic range: better than 30DB
- S21, S11 amplitude step: 0.01dB
- Scanning speed: about 450 points per second
- Maximum sweep width: 1K-550M
- Minimum sweep width: 100Hz (set to 101 points)
- Maximum number of scan points: 9999
- Minimum scan points: 101
- Suggested scanning points: 201, 101, 501, 801, 1001, 1201, 1801
- Marking points: 5
- Interface: USB, BNC
- Size: 40.5*97*178mm
Accessories:
- 1 x AC (100-220)V-DC12V Adapter
- 2 x Male To Male SMA Cables
- 1 x USB Cable
- 2 x BNC-SMA Adapters
Package Included:
- 1 x Set of Sweep Frequency Generator
