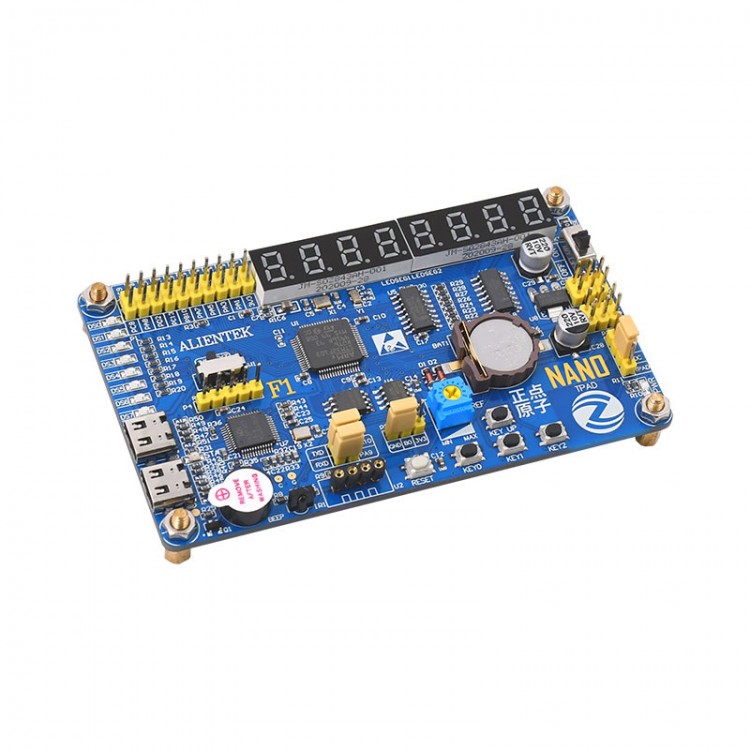

ALIENTEK Nano F103RBT6 Development Board STM32F1 Nano Board STM32 Onboard DAP Simulation

Availability: In stock, usually dispatched in 1 business day

  • Price:$46.02
  • Price in reward points: 460 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $45.10 $44.18 $42.80 $40.96 Contact US
Quantity:

ALIENTEK Nano F103RBT6 Development Board STM32F1 Nano Board STM32 Onboard DAP Simulation

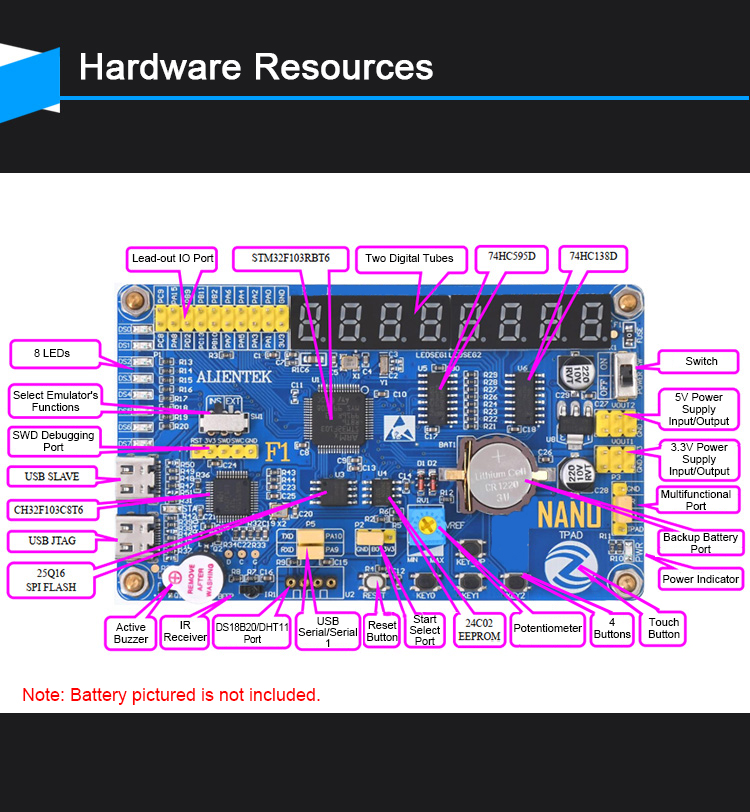

Advantages:

1. Rich Resources
1) CPU: STM32F103RBT6; FLASH: 128K, SRAM: 20K
2) STORAGE: EXPAND 2MB SPI FLASH, EEPROM
3) Interfaces: USB Slave x 1, DS18B20/DHT11 interface x 1, 2*10P IO lead-out interface x 1, multi-function interface x 1, extended SWD interface x 1, 5V power input/output interface x 1, and 3.3V power input/output interface x 1
4) Integrated DAP emulator (4-in-1: simulation debugging, download, serial communication and power supply)
5) Other configurations: 8-bit digital tube, 8 LEDs, 4-way touch buttons, 1 active buzzer, 1 high-precision potentiometer, 1 capacitive touch button, and 1-way infrared remote control reception

2. On-board DAP with four functions
1) Program debugging simulation
2) Download codes
3) Power supply
4) Serial port communication

3. Cost-effective and reasonable
1) On-board DAP with functions including debugging, downloading power, serial communication, a USB cable needed
2) 64-pin STM32F103RBT6 chip
3) Onboard SPI FLASH, EEPROM, digital tube, IO extension, etc.

Package Included:
- 1 x NANO development board
- 1 x Type-C USB cable
- 1 x IR remote control
- 2 x Dupont cables
- 1 x Storage box

Note:
- Battery is not included.
