FMCADDA-4269-9122 4-Channel 16Bit 250M ADC + 2-Channel 14Bit 1.2G DAC High Speed FMC Sub Card Acquisition Card

FMCADDA-4269-9122 4-Channel 16Bit 250M ADC + 2-Channel 14Bit 1.2G DAC High Speed FMC Sub Card Acquisition Card

Description:

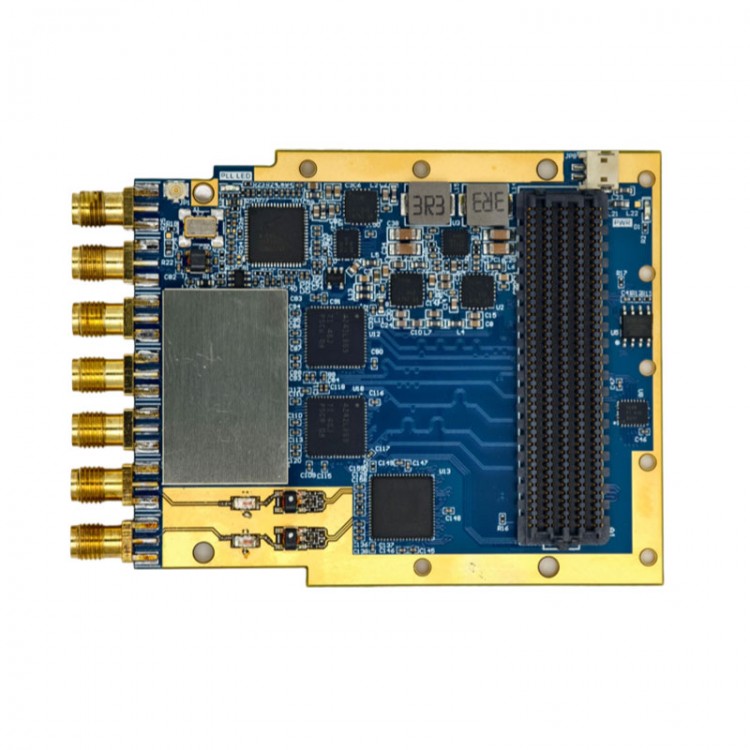

- The high-speed digital analog ADDA sub card FMCADDA-4269-9122 is equipped with 2pcs dual channel 16bit 250M ADC ADS42LB69 and dual channel 16bit 1.2G DAC AD9122. It is a FMC HPC standard interface sub card that complies with VITA57.1 standard, with a gold-plated process board, onboard OCXO, and PLL synchronous clock distributor. The ADDA input and output use standard SMA interfaces, supporting external clock input and triggering IO.

Specification:
- Model: FMCADDA-4269-9122
- ADC sampling rate/bit/channel: 250Msps, 16bit, 2pcs dual channel ADC (ADS42LB69)
- ADC front-end input frequency response: 500kHz - 500MHz (RF transformer AC coupling)
- ADC front-end input amplitude: 2.5Vpp max (50ohms)
- ADC driver interface: LVDS parallel port
- DAC sampling rate/bit/channel: 1.2Gsps, 16bit, 2-channel DAC (AD9122)
- DAC front-end output frequency response: 1M - 500MHz (RF transformer AC coupling)
- DAC front-end output amplitude: about -5dBm (at 100MHz monophonic, 50ohms)
- DAC driving interface: LVDS parallel port (using the HA serial number port of FMC HPC)
- Clock characteristics: onboard TCXO, 10M TCXO with a temperature drift of 0.1ppm, support external input reference clock and free TTL IO; onboard PLL clock chip
- Sub card interface: standard FMC HPC board to board high density connector
- Others: active cooling fan design

Package Included:
- 1 x FMC Sub Card
