FMCADDA-9695-9176 2-Channel 14Bit 1300M ADC + 2-Channel 16Bit 12.6G DAC High Speed FMC Sub Card Acquisition Card

FMCADDA-9695-9176 2-Channel 14Bit 1300M ADC + 2-Channel 16Bit 12.6G DAC High Speed FMC Sub Card Acquisition Card

Description:

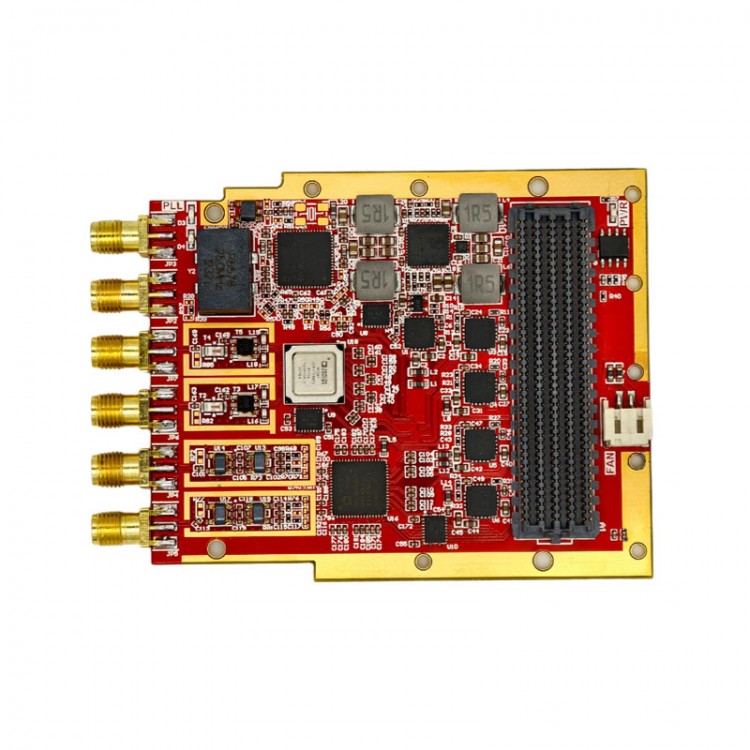

- The high-speed digital analog ADDA sub card FMCADDA-9695-9176 is equipped with dual channel 14bit 250M JESD204B ADC AD9695 and dual channel 16bit 12.6G JESD204B DAC AD9176. It is a FMC HPC standard interface sub card that complies with VITA57.1 standard, with a gold-plated process board, onboard OCXO, and JESD204B PLL synchronous clock distributor. The ADDA input and output use standard SMA interfaces, supporting external clock input and triggering IO.

Specification:
- Model: FMCADDA-9695-9176
- ADC sampling rate/bit/channel: 1300Msps, 14bit, dual channel ADC (AD9695BCPZ-1300)
- ADC front-end input frequency response: 500kHz - 500MHz (RF transformer AC coupling)
- ADC front-end input amplitude: 2Vpp max (50ohms)
- ADC driver interface: JESD204B (4Lane, support Lane speed rate up to 10Gbps)
- DAC sampling rate/bit/channel: 12.6Gsps, 16bit, 2-channel DAC (AD9176BCPZ)
- DAC front-end output frequency response: 10M - 5000MHz (RF transformer AC coupling)
- DAC front-end output amplitude: about -5dBm (at 1GHz monophonic, 50ohms)
- DAC driving interface: JESD204B (8Lane, support Lane speed rate up to 15.6Gbps)
- Clock characteristics: onboard OCXO, 25M low phase noise OCXO, temperature drift of 0.1ppm, support external input reference clock; onboard LMK04828 high performance JESD204B clock chip
- Sub card interface: standard FMC HPC board to board high density connector

Package Included:
- 1 x FMC Sub Card
