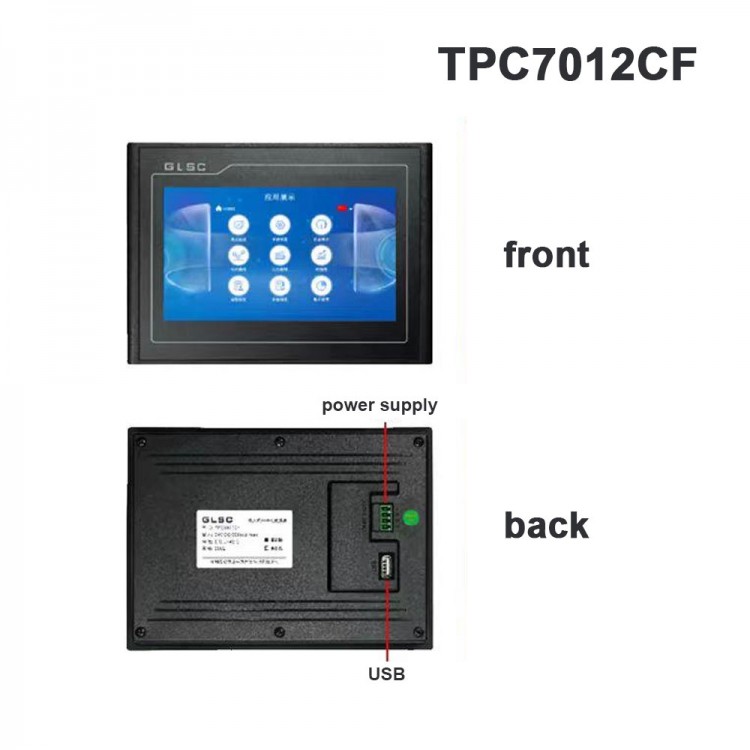

GLSC TPC7012CF 7-Inch HMI Touch Screen with 192mm × 138mm Cutout 32MB Memory RS485 or RS232 Port

GLSC TPC7012CF 7-Inch HMI Touch Screen with 192mm × 138mm Cutout 32MB Memory RS485 or RS232 Port

Product Positioning:
* McgsTpc C Series Touchscreen is a new generation of embedded all-in-one touchscreen. Based on the Linux system, it features the latest technology, optimal configuration, and excellent cost performance.
* Linux Kernel: Brand-new Linux operating system kernel
* McgsPro: Newly developed McgsPro configuration software
* Multiple Interfaces: Supports RS232/RS485 interfaces

Features:
* Architecture For ARM: Equipped with a processor for ARM-core, the 600MHz main frequency meets industrial computing and display requirements.
* Communication Interfaces: It supports RS232/RS485/TTL/USB, with multiple combinations to meet on-site device connectivity needs.
* Widescreen Display: The LCD uses a 16:9 widescreen display. The golden ratio meets customers' visual display expectations.
* Alarm Function: The HMI supports multiple alarm display formats, with alarm export making equipment faults clear at a glance.
* Terminal Direct Connection: It uses terminal-style direct wiring, offering a compact and simple solution that saves time, space, and cost.
* Open-Frame Structure: Brand-new open-frame design without outer casing, crafted with precision to meet on-site installation needs.
* Multilingual Support: It supports multiple languages, with flexible and easy-to-configure setup options.
* Device Drivers: It supports Modbus/free protocols, enabling highly efficient configuration with mature applications.

Detailed Parameters:
Product Specifications:
* Structure: Industrial Plastic
* Mounting Method: Embedded Installation
* Power Supply: DC 24V
* Net Weight: Approximately 0.8kg
* Overall Dimensions: 203mm × 149mm × 38.5mm
* Front Panel: 203mm × 149mm × 6mm
* Panel Viewing Area: 154.8mm × 87.8mm
* Cabinet Cutout: 192mm × 138mm

Product Features:
* LCD Screen: 7" TFT LCD screen, resolution 800 × 480, LED backlight
* CPU: Mainboard based on the core for ARM, 600MHz main frequency
* Touchscreen: 4-wire resistive type
* Memory: 32MB
* System Storage: 8MB
* Interfaces: 1 × RS485 or 1 × RS232, and 1 × USB
* Ethernet Port: None

Operating Environment:
* Operating Temperature: 0°C ~ 45°C
* Vibration Frequency: 10–57Hz, 57–150Hz
* Operating Humidity: 5% ~ 90%
* Vibration Displacement: 0.075mm
* Vibration Acceleration: 9.8m/s²
* Storage Temperature: -10°C ~ 60°C
* Vibration Sweep Rate: 1 Oct/min (octave per minute)

Other Features:
* Electromagnetic Compatibility: Industrial Level 2
* Protection Level: IP65 (Front Panel)

Mounting Method:
* Hook Mounting: Compact and refined. Suitable for various scenarios with flexible options.
* Note: When using hook mounting, do not over-tighten the screws; installation angle should be between 0° and 30°.
* Rear Insertion Mounting: Simple, convenient, and space-saving.

Supporting Software:
* McgsPro is a configuration software designed for integrated touch panels. Compared to the older MCGSE embedded configuration software, McgsPro offers optimized appearance and performance for each configuration component.
* Classic view layout
* Brand-new commonly used features
* Enhanced and refined functionalities
* Fully compatible with MCGSE

Packing List:
* 1 × HMI Display Screen

Packaging Details:
* Weight: 0.8kg

Note:
* Communication cable is not included.
