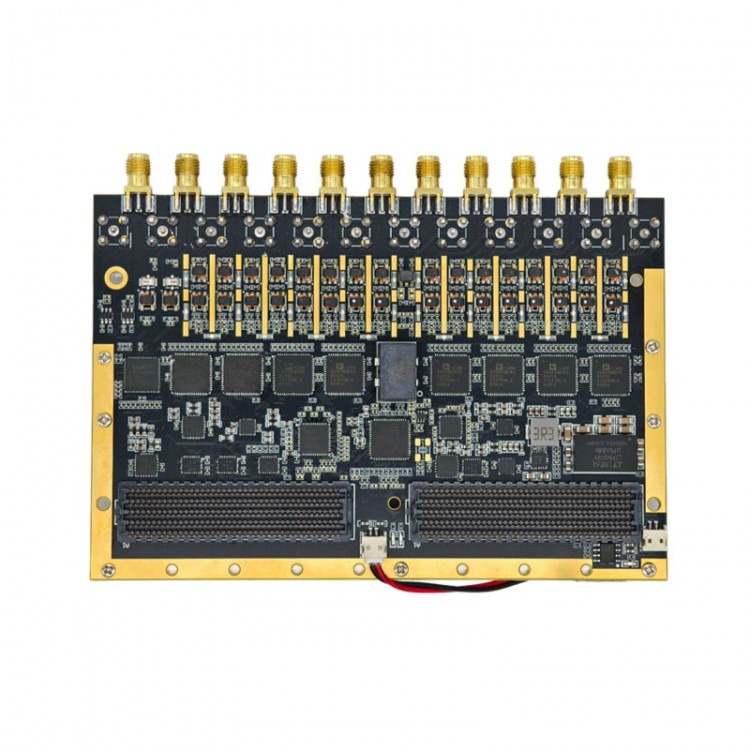

FMCADDA-2T16R-9552 16-Channel 14Bit 500M ADC + 2-Channel 16Bit 2.2G DAC High Speed FMC Sub Card Acquisition Card
Description:
- The high-speed digital analog ADDA sub card FMCADDA-2T16R-9552 is equipped with 8pcs dual channel 14bit 1.3G JESD204B ADC AD9695 and 1pcs dual channel 16bit 2.2G JESD204B DAC AD9152. It is a FMC HPC double width standard interface sub card that complies with VITA57.1 standard, with a gold-plated process board, onboard OCXO, and JESD204B PLL synchronous clock distributor. The ADDA input and output use standard SSMC interfaces, supporting external clock input and triggering IO.
Specification:
- Model: FMCADDA-2T16R-9552
- ADC sampling rate/bit/channel: 8pcs dual channel ADC AD9695-1300, sub card supported sampling rate up to 600Msps, 14bit
- ADC front-end input frequency response: 500kHz - 500MHz (RF transformer AC coupling)
- ADC front-end input amplitude: 2Vpp max (50ohms)
- ADC driver interface: JESD204B (2Lane/Chip, Lane speed rate up to 12Gbps)
- DAC sampling rate/bit/channel: 1pcs 2.2Gsps, 16bit, 2-channel DAC (AD9152BCPZ)
- DAC front-end output frequency response: 1M - 500MHz (RF transformer AC coupling)
- DAC front-end output amplitude: about -4dBm (at 50MHz monophonic, 50ohms)
- DAC driving interface: JESD204B (4Lane/Chip, support Lane speed rate up to 10Gbps)
- Clock characteristics: onboard OCXO, 25M low phase noise OCXO, temperature drift of 0.1ppm, support external input reference clock; onboard LMK04828 high performance JESD204B clock chip
- Channel isolation degree: adjacent channels within the transceiving group ≥70dB
- Through consistency: amplitude consistency ≤0.4dB; phase consistency ≤2° at 50M monophonic (no algorithm calibration)
- Sub card interface: standard double width FMC HPC board to board high density connector; Support channel splitting for single width FMC HPC driver 1/2 resources.
- Others: equipped with sub card active cooling fan
Package Included:
- 1 x FMC Sub Card
